Product Description

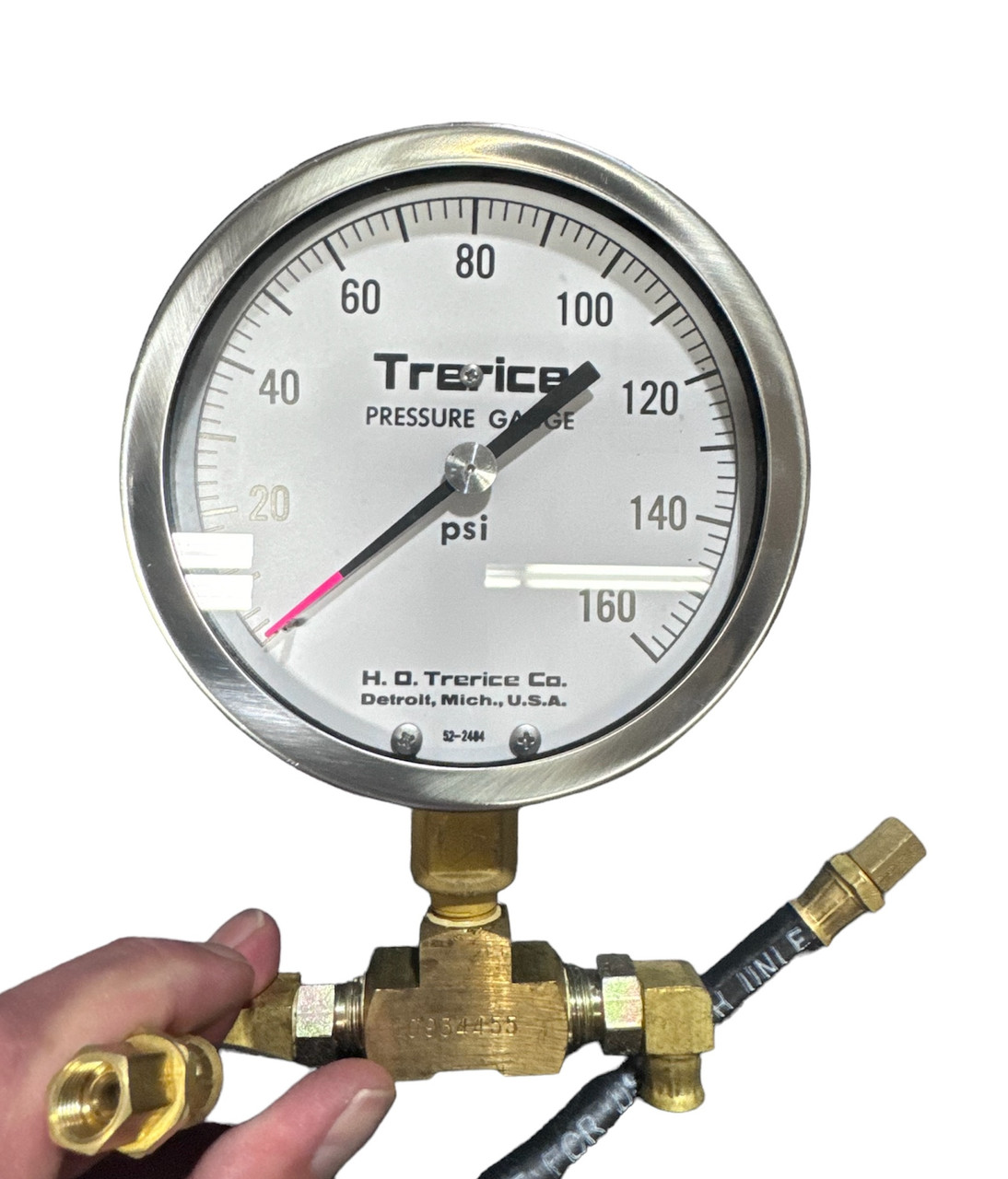

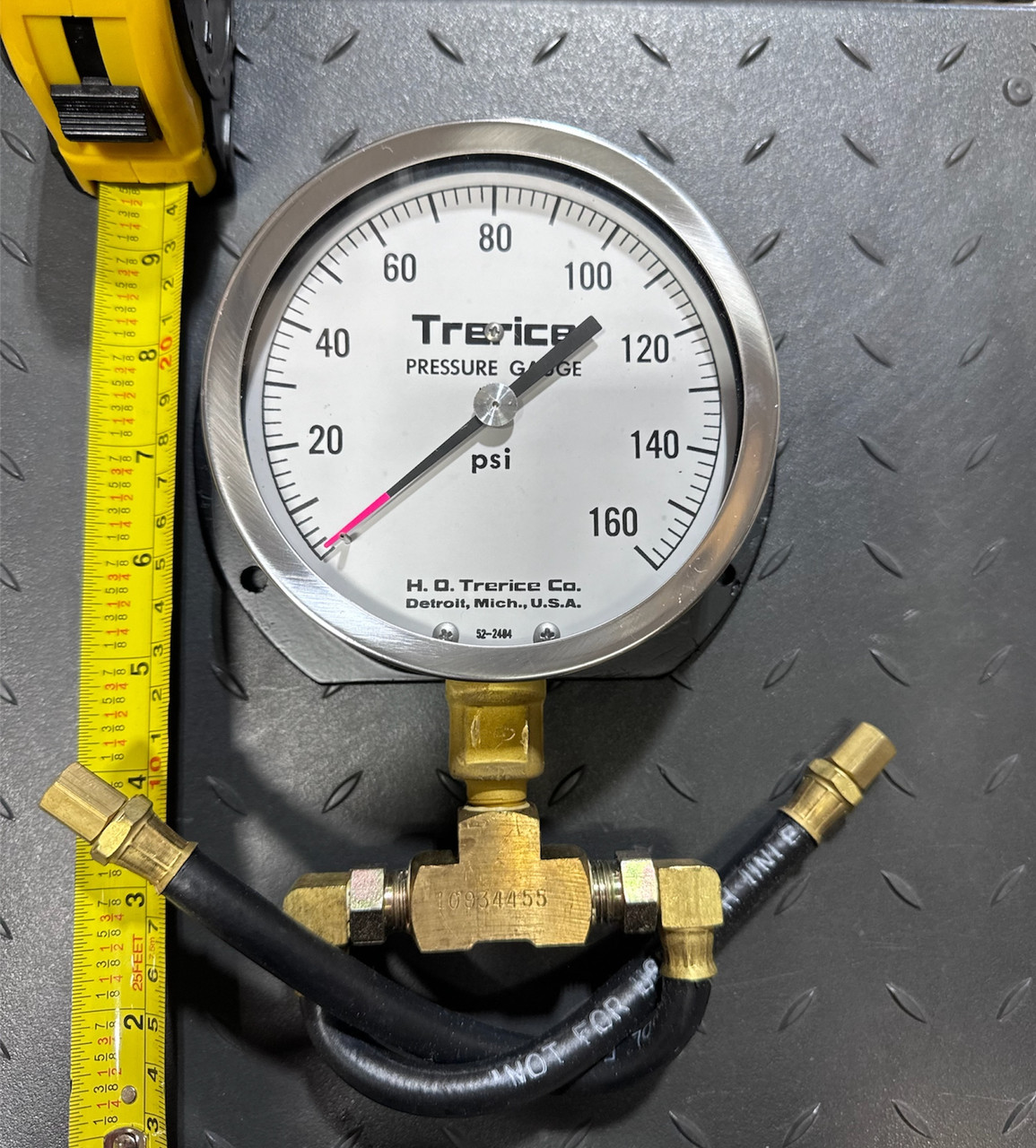

Military Issue Pressure Gauge:
- Made for the military by H.O. Trerice Co, in the USA
- New condition
- Bolt circle Diameter: 5.688 inches nominal
- Mounting hole diameter: 0.219 inches nominal
- Material: Copper alloy actuating element
- Overall depth: 1.938 inches nominal
- Material: Steel Case
- Surface treatment: Zinc Case
- Pointer type: Indicating
- Mounting method: Flange
- Dial Size: 4 1/2 inch diameter
- Connection size: .250 in Npt dia
- Pointer Color: Black
- Connecting Location: Bottom
- Bezel type: Slips-on
- Scale name: pressure
- Graduation unit: 80.0 pounds per square inch
- Accessory components: Bushing, pipe 2, tee, pipe, hose assembly
- Scale Range: +0.0 to 160.0 pounds pressure per square inch
- Scale type: Single
- Scale smallest increment: 80.0 pounds per square inch
- Vehicle ,recovery
- 3 mounting holes
- Buourdon tube
- Overall diameter: 6.188 inches nominal
